Master the Art of Car Alternator Rectifier Testing

-

How to Test Car Alternator Rectifier

A car alternator rectifier is responsible for converting the alternating current (AC) generated by the alternator into direct current (DC) that can be used by the car's electrical system. A faulty rectifier can lead to a number of problems, including a dead battery, flickering lights, and even engine damage.

How to Identify Signs of a Faulty Car Alternator Rectifier

There are a number of signs that may indicate a faulty car alternator rectifier. These include:

• Dimming or flickering headlights
• Slow or sluggish engine performance
• Difficulty starting the car
• Battery warning light on the dashboard
• Strange noises coming from the alternator

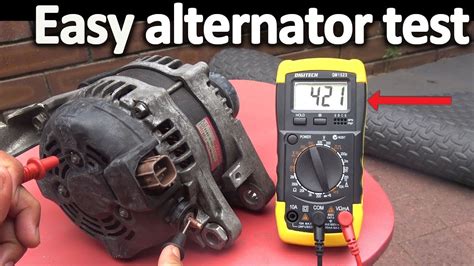

How to Test Car Alternator Rectifier with a Multimeter

If you suspect that your car alternator rectifier may be faulty, you can test it using a multimeter. Here are the steps:

1. Set the multimeter to the AC voltage setting.
2. Connect the positive lead of the multimeter to the positive terminal of the battery.
3. Connect the negative lead of the multimeter to the negative terminal of the battery.
4. Start the car and rev the engine to 2,000 RPM.
5. Read the voltage on the multimeter. It should be between 13.5 and 14.5 volts.

If the voltage is below 13.5 volts, the rectifier may be faulty. If the voltage is above 14.5 volts, the voltage regulator may be faulty.

How to Test Car Alternator Rectifier with a Load Tester

Another way to test an alternator rectifier is to use a load tester. A load tester is a device that puts a load on the alternator, which helps to identify any weaknesses in the rectifier.

To test the alternator rectifier with a load tester, follow these steps:

1. Connect the load tester to the battery terminals.
2. Start the car and rev the engine to 2,000 RPM.
3. Increase the load on the alternator until the voltage drops below 13 volts.
4. If the voltage drops below 13 volts, the rectifier may be faulty.

How to Replace a Faulty Car Alternator Rectifier

If you have determined that your car alternator rectifier is faulty, you will need to replace it. Here are the steps:

1. Disconnect the negative battery terminal.
2. Remove the alternator from the car.
3. Disconnect the electrical connectors from the alternator.
4. Remove the bolts that hold the rectifier in place.
5. Install the new rectifier.
6. Reinstall the alternator and reconnect the electrical connectors.
7. Reconnect the negative battery terminal.

Conclusion

Testing and replacing a car alternator rectifier is a relatively simple task that can save you a lot of money in the long run. By following the steps outlined in this article, you can ensure that your car's electrical system is functioning properly.

.
