How to Replace the Alternator in a Toyota Highlander
Replacing a faulty alternator in your Toyota Highlander is a crucial maintenance task to ensure your vehicle's electrical system functions properly. If you're experiencing dim lights, a weak battery, or electrical issues, it's likely time to replace your alternator. Here's a comprehensive guide to help you through the process.
Difficulty Level: Intermediate
Tools Required:
- Socket wrench set
- Screwdriver set
- Multimeter
- Jack and jack stands
- Safety glasses
Steps to Replace Alternator Toyota Highlander:
Safety First: Park your Highlander on a level surface, engage the parking brake, and disconnect the negative battery terminal.

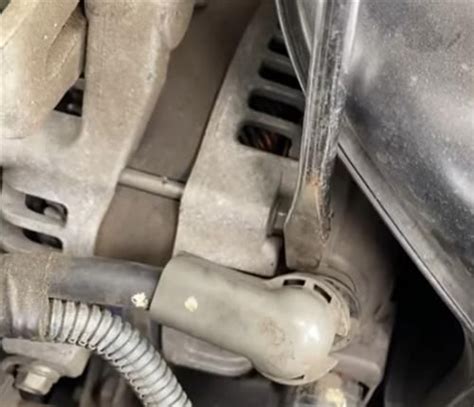

Locate the Alternator: The alternator is typically found on the front of the engine, driven by a belt. It's often held in place by bolts or brackets.
Disconnect Electrical Connectors: Unplug the electrical connectors connected to the alternator. Use a screwdriver to release any retaining clips.
Remove Drive Belt: Locate the drive belt tensioner and use the appropriate wrench to loosen its tension. This will allow you to remove the drive belt from the alternator pulley.
Unbolt and Remove Alternator: Using the socket wrench, unbolt the mounting bolts that secure the alternator to the engine. Carefully lift out the alternator and set it aside.
Install New Alternator: Align the new alternator with its mounting bracket and insert the bolts. Tighten the bolts securely using the socket wrench.
Reinstall Drive Belt: Place the drive belt over the alternator pulley and the other pulleys it drives. Use the tensioner to adjust the belt tension as per the manufacturer's specifications.
Reconnect Electrical Connectors: Plug in the electrical connectors that were previously disconnected. Ensure they are securely seated.
Reconnect Battery and Test: Reconnect the negative battery terminal. Start your Highlander and use a multimeter to check the voltage at the battery. It should read around 14 volts with the engine running.
Summary:
Replacing the alternator in a Toyota Highlander requires a basic understanding of auto mechanics and the ability to use hand tools. By following the steps outlined above, you can effectively diagnose and replace a faulty alternator, ensuring your vehicle's electrical system functions properly. Remember to always disconnect the battery, use safety precautions, and refer to your vehicle's service manual for specific details and torque specifications.
How to Replace the Alternator on a Toyota Highlander
Replacing the alternator on a Toyota Highlander can be a daunting task, but it's not as difficult as you might think. With the right tools and a little bit of patience, you can get the job done in a few hours.
Before You Start
Before you start, gather the following tools:
- Socket wrench set
- Ratchet wrench
- Voltage tester
- Screwdriver
- New alternator
Step 1: Disconnect the Battery
The first step is to disconnect the negative terminal of the battery. This will prevent any electrical shocks while you're working.
Step 2: Remove the Serpentine Belt
Next, you need to remove the serpentine belt. This belt drives the alternator, so it needs to be removed before you can access the alternator.
Step 3: Unbolt the Alternator
Once the serpentine belt is removed, you can unbolt the alternator. There are usually two or three bolts that hold the alternator in place.
Step 4: Disconnect the Electrical Connectors
Once the alternator is unbolted, you need to disconnect the electrical connectors. There are usually two connectors: one for the positive terminal and one for the negative terminal.
Step 5: Remove the Alternator
Now, you can remove the alternator from the vehicle. Be careful not to drop it, as it can be heavy.
Step 6: Install the New Alternator
Now, you can install the new alternator. Simply reverse the steps that you took to remove the old alternator.
Step 7: Reconnect the Electrical Connectors
Once the new alternator is installed, you need to reconnect the electrical connectors. Make sure that the positive terminal is connected to the positive terminal on the alternator, and the negative terminal is connected to the negative terminal.
Step 8: Install the Serpentine Belt
Next, you need to install the serpentine belt. Route the belt around the pulleys, and then tighten it using the tensioner.
Step 9: Connect the Battery
Finally, you can reconnect the negative terminal of the battery. Start the engine and check the voltage. The voltage should be between 13.5 and 14.5 volts.
Conclusion
Replacing the alternator on a Toyota Highlander is a relatively simple task. With the right tools and a little bit of patience, you can get the job done in a few hours.
.
