How to Change Alternator Ford Focus 2007 Like a Pro
Encountering alternator issues with your 2007 Ford Focus can be frustrating. But don't fret! With a few simple steps, you can get your car back on the road in no time.
Specifically, you might notice flickering lights, battery discharge, or difficulty starting your engine.
Materials You'll Need:
- New alternator
- Socket wrench set
- Wire brush
- Battery terminal cleaner
[Step-by-Step Guide: How to Change Alternator Ford Focus 2007]
- Safety First: Disconnect the negative terminal on your battery.
- Locate the Alternator: It's usually mounted on the front of the engine, driven by a serpentine belt.
- Remove Electrical Connections: Unplug the electrical connections attached to the alternator.
- Loosen the Drive Belt: Using a socket wrench, loosen the tension on the serpentine belt and remove it from the alternator pulley.
- Unbolt the Alternator: Remove the bolts holding the alternator in place.
- Replace the Alternator: Position the new alternator and tighten the bolts.
- Reinstall Drive Belt: Place the serpentine belt back on the pulleys and adjust the tension.
- Reconnection: Plug in the electrical connections to the new alternator.
- Clean Battery Terminals: Use a battery terminal cleaner to remove corrosion from the battery terminals and reconnect the negative terminal.
By following these steps, you'll have a functioning alternator in no time. Remember, regular maintenance and proper battery care can extend the alternator's lifespan and prevent future issues.
Diagnosing a Faulty Alternator in a 2007 Ford Focus:
When faced with electrical issues in your 2007 Ford Focus, one potential culprit could be a faulty alternator. Here's a comprehensive guide to help you diagnose and potentially resolve this issue.
Symptoms of a Failing Alternator:
- Dimming or flickering headlights
- Difficulty starting the engine
- Electrical accessories not functioning properly
Checking Battery Voltage:
Using a voltmeter, measure the voltage across the battery terminals. With the engine off, it should read around 12.6 volts. Start the engine and recheck the voltage; it should be between 13.5 and 14.5 volts. If the voltage is significantly lower, it could indicate a faulty alternator.

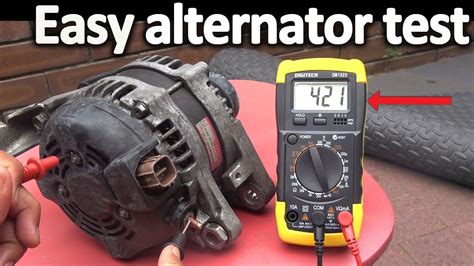

Testing Alternator Output:
Connect the voltmeter to the alternator's positive terminal and the negative terminal of the battery. With the engine running at around 2,000 RPM, the voltmeter should read between 13.5 and 14.5 volts. If the voltage is lower, it confirms a faulty alternator.
Accessing the Alternator:
Locate the alternator on the front of the engine, usually driven by a serpentine belt. Remove the serpentine belt by loosening the tensioner pulley. Unbolt the alternator and disconnect its electrical connections.
Removing the Alternator:
Carefully slide the alternator out of its mounting bracket. Be cautious not to damage any wiring or connectors. Once removed, inspect the alternator for any obvious signs of damage, such as cracks or burnt wires.
Installing the New Alternator:
Align the new alternator with its mounting bracket and slide it into place. Tighten the mounting bolts to the specified torque. Reconnect the electrical connections and install a new serpentine belt. Tension the belt as per the manufacturer's recommendations.
Verifying Proper Function:
Start the engine and verify that the alternator is charging properly. Use the voltmeter to check the battery voltage, which should be between 13.5 and 14.5 volts. If the voltage is within this range, the alternator is likely functioning correctly.
Additional Tips:
- Always disconnect the battery before working on the electrical system.
- Replace the serpentine belt simultaneously with the alternator to avoid future issues.
- Regularly check the alternator's connections and inspect it for signs of wear and tear.
- If you're not comfortable performing the repair yourself, consult a qualified mechanic.
