Unlock the Secrets of Alternator Replacement in Your Dodge Caravan
Struggling with a dimming dashboard and flickering headlights? It could be a sign that your alternator is on its last legs. Replacing an alternator can be a daunting task, but with the right tools and a bit of patience, it's a manageable job. Here's a step-by-step guide that will empower you to tackle this essential repair.
Facing the Challenges:
Dealing with alternator issues can be frustrating, especially when you're left stranded with a dead battery. These problems often strike unexpectedly, making it crucial to have the knowledge to fix them yourself. By embarking on this repair, you'll save time, money, and gain a sense of accomplishment.
Step-by-Step Guide:
- Safety First: Park on a level surface and engage the parking brake. Disconnect the negative battery terminal.
- Locate the Alternator: It's typically situated near the top of the engine, driven by a belt.
- Disconnect Wiring Harness: Unplug the electrical connectors from the alternator.
- Remove the Belt: Using a wrench, loosen the bolt tensioning the belt. Slip the belt off the alternator pulley.
- Unbolt the Alternator: Use a wrench to remove the bolts securing the alternator.
- Install the New Alternator: Align the new alternator and tighten the bolts.
- Reconnect the Belt: Loop the belt around the alternator pulley and adjust the tension.
- Reconnect Wiring Harness: Plug the electrical connectors back into the alternator.
- Reconnect Battery: Reconnect the negative battery terminal.
Essential Tips:
- Check the alternator belt for cracks or wear. Replace it if necessary.
- Use a torque wrench to tighten the alternator bolts to the specified torque.
- Avoid overtightening the belt, as this can cause damage.
Empowering Conclusion:
By following these steps, you'll successfully replace the alternator in your Dodge Caravan, ensuring a reliable power source for your vehicle. Remember, with the right preparation and patience, you can tackle any automotive challenge, saving time, money, and keeping your car running smoothly.
Step 1: Safety First
Before you start working on your Dodge Caravan, it's important to take some safety precautions. Disconnect the negative battery terminal to prevent any electrical accidents. Park the van in a well-ventilated area, as you'll be working with chemicals. Wear gloves and eye protection to protect yourself from any fluids or debris.
Image: Safety Precautions for Changing an Alternator
Step 2: Locate the Alternator
The alternator is usually located on the front of the engine, near the top. It's a cylindrical-shaped component with a belt attached to it. Once you've located the alternator, you can start removing the bolts that hold it in place.

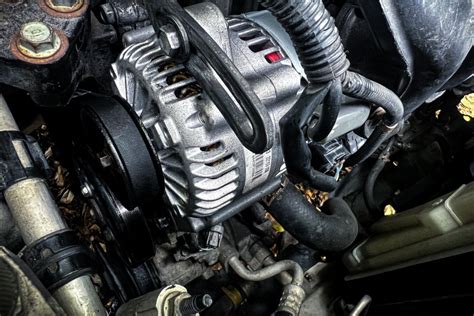

Image: Locating the Alternator
Step 3: Remove the Belt
Using a wrench or socket, loosen the tensioner pulley bolt and remove the belt from the alternator. Be careful not to drop the belt into the engine compartment.
Image: Removing the Belt
Step 4: Disconnect the Electrical Connectors
Once the belt is removed, you can disconnect the electrical connectors from the alternator. Use a screwdriver or pliers to gently unclip the connectors.
Image: Disconnecting the Electrical Connectors
Step 5: Unbolt the Alternator
Now, you can unbolt the alternator from the engine block. There are usually two or three bolts that need to be removed. Once the bolts are loose, you can carefully lift the alternator out of its mounting bracket.
Image: Unbolting the Alternator
Step 6: Install the New Alternator
Now, you can install the new alternator by reversing the steps you took to remove the old one. First, insert the new alternator into its mounting bracket and secure it with the bolts. Don't overtighten the bolts.
Image: Installing the New Alternator
Step 7: Connect the Electrical Connectors
Next, connect the electrical connectors to the new alternator. Make sure they are securely fastened.
Image: Connecting the Electrical Connectors
Step 8: Install the Belt
Now, you can install the belt by slipping it over the alternator pulley and the other pulleys in the system. Tighten the tensioner pulley bolt until the belt is taut, but not too tight.
Image: Installing the Belt
Step 9: Reconnect the Battery
Now, you can reconnect the negative battery terminal. Make sure it is tightened securely.
Image: Reconnecting the Battery
Step 10: Test the Alternator
Finally, start the engine and let it run for a few minutes. Check the voltage at the battery using a multimeter. It should be around 14 volts with the engine running. If the voltage is too low, the alternator may not be charging properly.
