How to Replace Alternator on 2016 Ford Explorer: A Step-by-Step Guide
Introduction
Replacing an alternator on a 2016 Ford Explorer may seem like a daunting task, but with the right tools and a bit of mechanical knowledge, you can tackle it yourself. This comprehensive guide will walk you through the process, providing detailed instructions and helpful tips along the way.
Step 1: Safety First

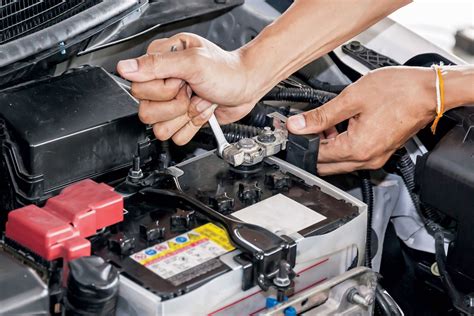

Before you begin, ensure your safety by parking the Explorer on level ground, engaging the parking brake, and disconnecting the negative terminal on your battery.
Step 2: Locate the Alternator

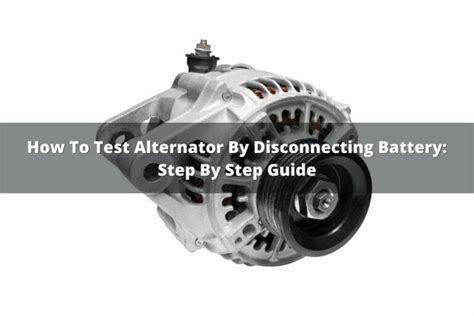

The alternator on a 2016 Ford Explorer is typically located on the front of the engine, near the top. It's a cylindrical component with a large pulley on one end.
Step 3: Remove the Serpentine Belt
The serpentine belt runs around the alternator pulley, so you must remove it first. Use a serpentine belt tool to release the tension on the belt and slip it off the pulleys.

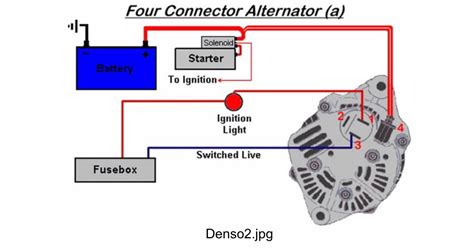

Step 4: Disconnect Electrical Connections
Next, disconnect the electrical connections to the alternator. There should be two wires attached to it, a thick positive wire and a smaller field wire. Use a wrench or pliers to loosen the nuts and pull off the terminals.

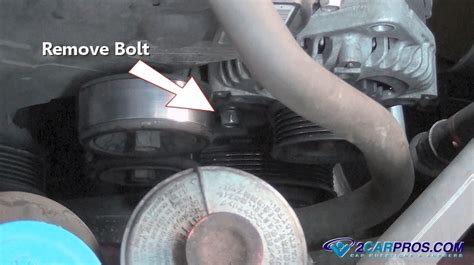

Step 5: Remove Mounting Bolts
Now, locate and remove the mounting bolts holding the alternator in place. There may be two or three bolts. Once the bolts are removed, gently wiggle the alternator to loosen it.
Step 6: Install the New Alternator
Take your new alternator and position it in place, aligning it with the mounting bolts. Tighten the bolts securely, ensuring the alternator is firmly held.
Step 7: Reconnect Electrical Connections
Reconnect the positive and field wires to the alternator. Tighten the nuts to ensure a good connection.
Step 8: Install Serpentine Belt
Reinstall the serpentine belt by looping it over the pulleys. Use the serpentine belt tool to tension the belt correctly.
Step 9: Reconnect Battery
Finally, reconnect the negative terminal on your battery and tighten the nut securely.
Conclusion
Replacing the alternator on your 2016 Ford Explorer is a straightforward process that can be completed with basic tools and mechanical skills. By following these steps carefully, you can save yourself the expense of a mechanic and keep your vehicle running smoothly.
.
